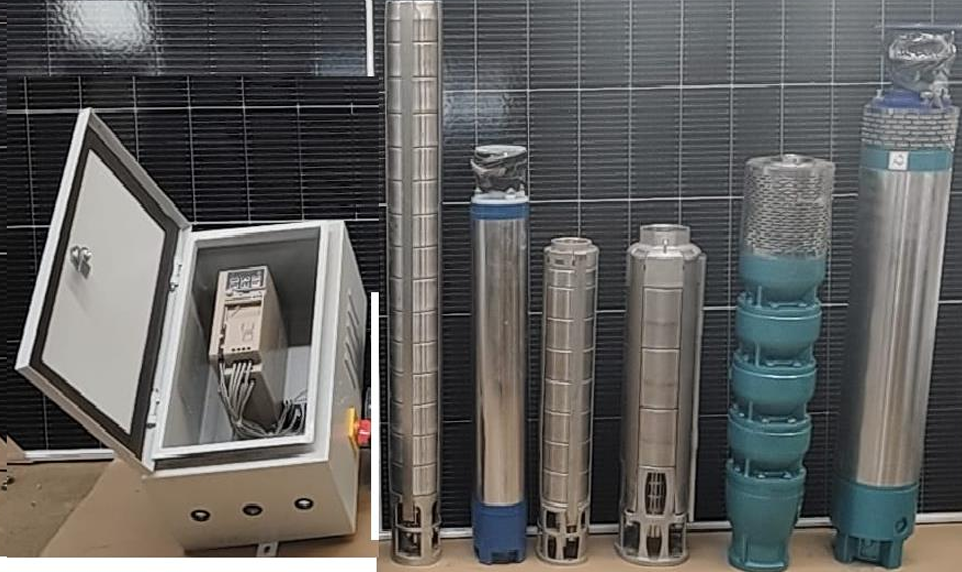

About MYLOK ENERGY TECH
Premium Quality
Manufacturer
About Us

MYLOK ENERGY TECH

Manufacturers of SolarAC/DC submersible and Monoblock Pumpset, Solar Controller and Solar Street lights.

We MYLOK ENERGY TECH are manufacturer of high performance Solar Pumps, Controllers and a comprehensive range of AC & DC (PMSM Motors).

Our Products

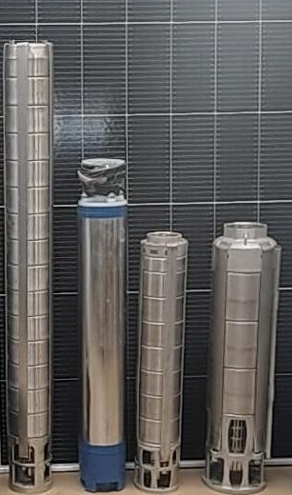

Solar Pumps

Solar Submersible Pump
HIGH TORQUE

SOLAR SUBMERSIBLE PUMPS

MYLOK AQUA solar submersible pumps have comprehensive range of pumps that operate on a PV array of 1200 Wp to 10000Wp. These pumps are made using SS AISI 304 grade and feature laser welded SS impellers coupled with Brushless DC motors (PMSM) or AC Induction motors. PMSM motors provide high torque, are extremely efficient, have encapsulated windings and a robust construction that makes them more durable. All Submersible Solar Pumps are supplied with a controller with built in MPPT. The controller is housed with IP65 /IP54 housing suitable for outdoor duty and ensures an early start and operation at maximum V x I combination in various irradiation conditions resulting in maximum water output. Protection against reverse polarity, over load, overheating and dry running are integrated along with fault diagnostics.

UNIQUE FEATURES
  • Strainer For Sandy Water
  • 100% Stainless Steel AISI304 Parts
  • Extremely Efficient DC/AC Induction Motors
  • Stainless Steel Rotor With Rare Earth Magnets
  • Encapsulated Winding
  • Ceramic Carbon Thrust Bearing

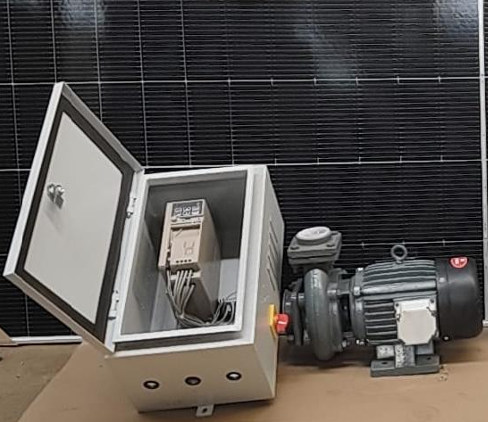

SOLAR SURFACE PUMPS

MYLOK AQUA Solar Surface pumps are the most efficient and reliable solution for conditions where the suction head is limited to 7 meters and have a significantly higher volume of These surface pumps are of mono-block construction with the impeller directly mounted on the motor shaft. surface pumps are a proven solution and are ideally suited for canal irrigation, drip and sprinkler irrigation and transferring large volumes of water over a distance.

UNIQUE FEATURES
  • High Efficiency
  • Easy to install and maintain
  • Rigid Construction
  • High Discharge
Solar Surface Pump
HIGH DISCHARGE

Technical Specifications

Detailed specifications for our AC and DC Solar Submersible Pumps.

PARAMETER 2 HP AC @ 30 Mtr 3 HP AC @ 70 Mtr 5 HP AC @ 100 Mtr 7.5 HP AC @ 100 Mtr 10 HP AC @ 100 Mtr
GENERAL DETAILS
PUMP TYPE - SURFACE/ SUBMERSIBLE AC Submersible AC Submersible AC Submersible AC SUBMERSIBLE DC SUBMERSIBLE
PUMP POWER RATING 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
WATER DISCHARGE (LPD) 63000 42000 43200 61200 81900
OPERATING PUMP HEAD (M) 30 Mtr 70 Mtr 100 Mtr 100 mtr 100 mtr
SOLAR MODULE CONFIGURATION 600 Wp X 3 Nos 600 Wp X 5 Nos 600 Wp X 9 Nos 600 Wp X 12 Nos 600 Wp x 15 Nos
SOLAR PV MODULE (IN WATT) 1800 3000 5400 7200 9000
MATERIAL OF CONSTRUCTION
IMPELLER SS 304 SS 304 SS 304 SS 304 SS 304
SHAFT SS 410/SS431 SS 410/SS431 SS 410/SS431 SS 410/SS431 SS 410/SS431
CASING SS 304 SS 304 SS 304 SS 304 SS 304
BEARING Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel
NUTS, BOLTS, WASHERS (External) SS 304 SS 304 SS 304 SS 304 SS 304
MOTOR WINDING MATERIAL Copper Copper Copper Copper Copper
PUMP, MOTOR AND CONTROLLER DETAILS
MOTOR DETAILS
Motor Capacity 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
Voltage 115 VAC 170 VAC 260 VAC 380 VAC 415 VAC
Current 11 Amps 12 Amps 12 Amps 13.0 Amps 16.0 Amps
Motor RPM Max. 3450 3450 3450 3450 3450
Motor Winding STAR Conn. PVC Wiring STAR Conn. PVC Wiring STAR Conn. PVC Wiring Star Connection Star Connection
Motor Efficiency 70-74 % 74-78 % 76-77 % 80-82 % 79-81 %
Motor OD (mm) 100 mm 100 mm/150 mm 150 mm 150 mm 150 mm
Method of Cooling Water Cooled Water Cooled Water Cooled Water Cooling Water Cooled
Coolant Media Water Water Water Water Water
Winding Type(PVC , Enameled Copper etc. ) PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled
Minimum Power Cable Size Required (mm²) 2.5 mm² 4 mm² 4 mm² 4 mm² 4 mm²
PUMP DETAILS
Pump No. of Stages 7 16 21 19 14
Flow Rate (m3/hr) 9-10 m3/hr 5.9- 7 m3/hr 6.1-7 .5 m3/hr 8.5- 10 m3/hr 11.5 - 14 m3/hr
Delivery Pipe Size 2" 2" 2" 2" 2.5"
Pump Efficiency 65% 67% 68% 67% 70%
Pump OD (mm) 100 mm 98 mm 98 mm 140 mm 140 mm
If any Filters Inside Strainer is there Inside Strainer is there Inside Strainer is there Inside Strainer is there Inside Strainer is there
CONTROLLER DETAILS
Pump Controller Rating 1.5 kW 2.2 KW 3.7 kW 5.5 kW 7.5 kW
MPPT Range 100-260 VDC 150-300 VDC 200-500 VDC 250 - 650 VDC 450 - 800 VDC
Controller I/P Voc 100-320 VDC 150-300 VDC 220-500 VDC 250 - 790 VDC 450 - 900 VDC
Controller I/P Vmp 150-260 VDC 170-350 VDC 200-500 VDC 220 - 650 VDC 500 - 750 VDC
Controller I/P Current DC 12 Amps 12.5 Amps 12 Amps 14 Amps 17 Amps
Controller O/P Current 12 Amps 12.5 Amps 12 Amps 14 Amps 17 Amps
Controller I/P Power (W) 1.5 KW 2.2KW 3.7 KW 7 kW 7.5 kW
Enclosure IP Protection IP 65 IP 65 IP 65 IP 65 IP 65
MPPT Tracking yes yes yes yes yes
Operating Temp C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55)
Inside the control box temperature range up to 60 up to 60 up to 60 up to 60 up to 60
Relative Humidity Less than 95%, Less than 95%, Less than 95%, Less than 95%, Less than 95%,
Controller input over voltage 450 VDC 450VDC 800VDC 800VDC 900 VDC
Controller input under voltage 70 VDC 70 VDC 140VDC 250VDC 250-300 VDC
Controller Efficiency more than 90% more than 90% more than 90% more than 90% more than 90%
Degree of Protection IP 65/IP 54 IP 65 IP 65 IP65 IP65
Protection reverse Polarity, dry run etc. Voltage, reverse Polarity, dry run etc. Voltage, reverse Polarity, dry run Voltage, reverse Polarity, dry run Voltage, reverse Polarity, dry run
Remote Monitoring Details Yes Yes yes Yes Yes
PARAMETER 2 HP DC @ 30 Mtr 3 HP DC @ 70 Mtr 5 HP DC @ 100 Mtr 7.5 HP DC @ 100 Mtr 10 HP DC @ 100 Mtr
GENERAL DETAILS
PUMP TYPE - SURFACE/ SUBMERSIBLE DC Submersible DC Submersible DC Submersible DC SUBMERSIBLE AC SUBMERSIBLE
PUMP POWER RATING 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
WATER DISCHARGE (LPD) 68400 45000 50400 71400 95550
OPERATING PUMP HEAD (M) 30 Mtr 70 Mtr 100 Mtr 100 mtr 100 mtr
SOLAR MODULE CONFIGURATION 600 Wp X 3 Nos 600 Wp X 5 Nos 600 Wp X 9 Nos 600 Wp X 12 Nos 600 Wp x 15 Nos
SOLAR PV MODULE (IN WATT) 1800 3000 5400 7200 9000
MATERIAL OF CONSTRUCTION
IMPELLER SS 304 SS 304 SS 304 SS 304 SS 304
SHAFT SS 410/SS431 SS 410/SS431 SS 410/SS431 SS 410/SS431 SS 410/SS431
CASING SS 304 SS 304 SS 304 SS 304 SS 304
BEARING Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel
NUTS, BOLTS, WASHERS (External) SS 304 SS 304 SS 304 SS 304 SS 304
MOTOR WINDING MATERIAL Copper Copper Copper Copper Copper
PUMP, MOTOR AND CONTROLLER DETAILS
MOTOR DETAILS
Motor Capacity 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
Voltage 115 VAC 170 VAC 260 VAC 380 VAC 415 VAC
Current 11 Amps 12 Amps 12 Amps 13.0 Amps 16.0 Amps
Motor RPM Max. 3600 3600 3600 3600 3600
Motor Winding STAR Conn. PVC Wiring STAR Conn. PVC Wiring STAR Conn. PVC Wiring Star Connection Star Connection
Motor Efficiency 82-84 % 84-85 % 88-89 % 85-90 % 90-91 %
Motor OD (mm) 100 mm 100 mm 100 mm 100 mm 100 mm
Method of Cooling Water Cooled Water Cooled Water Cooled Water Cooling Water Cooled
Coolant Media Water Water Water Water Water
Winding Type(PVC , Enameled Copper etc. ) PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled
Minimum Power Cable Size Required (mm²) 2.5 mm² 4 mm² 4 mm² 4 mm² 4 mm²
PUMP DETAILS
Pump No. of Stages 6 14 21 17 12
Flow Rate (m3/hr) 9.6-10.5 m3/hr 6.5- 7.5m3/hr 7.1-8 m3/hr 9.9- 12 m3/hr 13.2 - 15 m3/hr
Delivery Pipe Size 2" 2" 2" 2" 2.5"
Pump Efficiency 68% 68% 70% 70% 70%
Pump OD (mm) 100 mm 98 mm 98 mm 140 mm 140 mm
If any Filters Inside Strainer is there Inside Strainer is there Inside Strainer is there Inside Strainer is there Inside Strainer is there
CONTROLLER DETAILS
Pump Controller Rating 1.5 kW 2.2 KW 3.7 kW 5.5 kW 7.5 kW
MPPT Range 100-260 VDC 150-300 VDC 200-500 VDC 250 - 650 VDC 450 - 800 VDC
Controller I/P Voc 100-320 VDC 150-300 VDC 220-500 VDC 250 - 790 VDC 450 - 900 VDC
Controller I/P Vmp 150-260 VDC 170-350 VDC 200-500 VDC 220 - 650 VDC 500 - 750 VDC
Controller I/P Current DC 12 Amps 12.5 Amps 12 Amps 14 Amps 17 Amps
Controller O/P Current 12 Amps 12.5 Amps 12 Amps 14 Amps 17 Amps
Controller I/P Power (W) 1.5 KW 2.2KW 3.7 KW 7 kW 7.5 kW
Enclosure IP Protection IP 65 IP 65 IP 65 IP 65 IP 65
MPPT Tracking yes yes yes yes yes
Operating Temp C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55)
Inside the control box temperature range up to 60 up to 60 up to 60 up to 60 up to 60
Relative Humidity Less than 95%, Less than 95%, Less than 95%, Less than 95%, Less than 95%,
Controller input over voltage 450 VDC 450VDC 800VDC 800VDC 900 VDC
Controller input under voltage 70 VDC 70 VDC 140VDC 250VDC 250-300 VDC
Controller Efficiency more than 90% more than 90% more than 90% more than 90% more than 90%
Degree of Protection IP 65 IP 65 IP 65 IP65 IP65
Protection Overload, under Voltage, reverse Polarity, dry run Overload, under Voltage, reverse Polarity, dry run Overload, under Voltage, reverse Overload, under Voltage, reverse Overload, under Voltage, reverse
Remote Monitoring Details Yes Yes yes Yes Yes
PARAMETER 1 HP AC - 20 Mtr 2 HP AC @ 20 Mtr 3 HP AC @ 20 Mtr 5 HP AC @ 30 Mtr 7.5 HP AC @ 20 Mtr 10 HP AC @ 20 Mtr
GENERAL DETAILS
PUMP TYPE - SURFACE/ SUBMERSIBLE AC Surface AC Surface AC Surface AC Surface AC Surface AC Surface
PUMP POWER RATING 0.75 kW 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
WATER DISCHARGE (LPD) 42000 88200 147000 168000 333200 445900
OPERATING PUMP HEAD (M) 6 Mtr 20 Mtr 20 Mtr 30 mtr 20 Mtr 20 Mtr
SOLAR MODULE CONFIGURATION 600 Wp X 2 Nos 600 Wp X 4 Nos 535 Wp X 6 Nos 535 Wp X 9 Nos 535 Wp X 13 Nos 325 Wp X 14 X 2 String / 535 Wp x 17 Nos
SOLAR PV MODULE (IN WATT) 1200 2400 3210 4815 6955 9095
MATERIAL OF CONSTRUCTION
IMPELLER CI FG200 CI FG200 CI FG200 CI FG200 CI FG200 CI FG200
SHAFT EN 8 EN 8 EN 8 EN 8 EN 8 CI FG200
CASING CI FG200 CI FG200 CI FG200 CI FG200 CI FG200 EN 8
BEARING Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel CI FG200
NUTS, BOLTS, WASHERS (External) Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel Carbon Steel
TYPE OF PUMP SEALING & MATERIAL Mechanical seal Mechanical seal Mechanical seal Mechanical seal Mechanical seal Mild Steel
MOTOR WINDING MATERIAL Copper Copper Copper Copper Copper Mechanical seal
PUMP, MOTOR AND CONTROLLER DETAILS
MOTOR DETAILS
Motor Capacity 0.75 kW 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
Voltage 50 VAC 115 VAC 170 VAC 260 VAC 380 VAC 415 VAC
Current 11 Amps 11 Amps 12 Amps 12 Amps 13.0 Amps 16.0 Amps
Motor RPM Max. 2850 2850 2850 2850 2850 2850
Motor Winding Connection STAR Conn. PVC Wiring STAR Conn. PVC Wiring STAR Conn. Ennamul Wiring enamel wire
Motor Efficiency 70-74 % 70-74 % 74-78 % 76-77 % 80-82 % 79-81 %
Method of Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
Winding Type Enamel PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled
Minimum Power Cable Size Required (mm2) 2.5 mm2 2.5 mm2 2.5 mm2 2.5 mm2 4 mm2 4 mm2
PUMP DETAILS
Flow Rate (m3/hr) @ Hot Profile 10-12 m3/hr 13-14.5 m3/hr 20.5-23 m3/hr 23.5-25 m3/hr 46.2-55 m3/hr 61.7-65 m3/hr
Pipe Size 2" X 2" 2" X 2" 2.5" X 2 " 2.5" X 2 " 3" X 3 " 3" X 3"
Pump Efficiency 65% 65% 68% 69% NA NA
Pump OD (mm) NA NA NA NA NA NA
If any Filters NA NA NA NA NA NA
CONTROLLER DETAILS
Pump Controller Rating 1.5 kW 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
MPPT Range 100-260 VDC 100-260 VDC 150-300 VDC 200-500 VDC 250 - 650 VDC 450 - 800 VDC
Controller I/P Voc 100-320 VDC 100-320 VDC 170-350 VDC 220-500 VDC 250 - 790 VDC 450 - 900 VDC
Controller I/P Vmp 150-260 VDC 150-260 VDC 150-300 VDC 200-500 VDC 220 - 650 VDC 500 - 750 VDC
Enclosure IP Protection IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
MPPT Tracking yes yes yes yes yes yes
Operating Temp C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55)
Inside the control box temperature range up to 60 up to 60 up to 60 up to 60 up to 60 up to 60
Relative Humidity Less than 95%, Less than 95%, Less than 95%, Less than 95%, Less than 95%, Less than 95%,
Controller input over voltage 450 VDC 450 VDC 450 VDC 800 VDC 800 VDC 900 VDC
Controller input under voltage 70 VDC 70 VDC 70 VDC 140 VDC 250 VDC 250-300 VDC
Controller Efficiency more than 90% more than 90% more than 90% more than 90% more than 90% more than 90%
Degree of Protection IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
Protection Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc.
Remote Monitoring Details Yes Yes Yes Yes Yes Yes
PARAMETER 1 HP DC - 20 Mtr 2 HP DC @ 20 Mtr 3 HP DC @ 20 Mtr 5 HP DC @ 30 Mtr 7.5 HP DC @ 20 Mtr 10 HP DC @ 20 Mtr
GENERAL DETAILS
PUMP TYPE - SURFACE/ SUBMERSIBLE DC Surface DC Surface DC Surface DC Surface DC Surface DC Surface
PUMP POWER RATING 0.75 kW 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
WATER DISCHARGE (LPD) 42000 99000 165000 182400 374000 500500
OPERATING PUMP HEAD (M) 6 Mtr 20 Mtr 20 Mtr 30 mtr 20 Mtr 20 Mtr
SOLAR MODULE CONFIGURATION 600 Wp X 2 Nos 600 Wp X 4 Nos 535 Wp X 6 Nos 535 Wp X 9 Nos 535 Wp X 13 Nos 325 Wp X 14 X 2 String / 535 Wp x 17 Nos
SOLAR PV MODULE (IN WATT) 1200 2400 3210 4815 6955 9095
MATERIAL OF CONSTRUCTION
IMPELLER CI FG200 CI FG200 CI FG200 CI FG200 CI FG200 CI FG200
SHAFT EN 8 EN 8 EN 8 EN 8 EN 8 CI FG200
CASING CI FG200 CI FG200 CI FG200 CI FG200 CI FG200 EN 8
BEARING Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel CI FG200
NUTS, BOLTS, WASHERS (External) Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel Carbon Steel
TYPE OF PUMP SEALING & MATERIAL Mechanical seal Mechanical seal Mechanical seal Mechanical seal Mechanical seal Mild Steel
MOTOR WINDING MATERIAL Copper Copper Copper Copper Copper Mechanical seal
PUMP, MOTOR AND CONTROLLER DETAILS
MOTOR DETAILS
Motor Capacity 0.75 kW 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
Voltage 50 VAC 115 VAC 170 VAC 260 VAC 380 VAC 415 VAC
Current 11 Amps 11 Amps 12 Amps 12 Amps 13.0 Amps 16.0 Amps
Motor RPM Max. 3300 3300 3300 3300 3300 3300
Motor Winding Connection DELTA Conn. PVC Wiring DELTA Conn. PVC Wiring DELTA Conn. PVC Wiring enamel wire
Motor Efficiency 82-84 % 82-84 % 84-85 % 88-89 % 80-82 % 79-81 %
Method of Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
Winding Type Enameled PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled PVC / Enameled
Minimum Power Cable Size Required (mm2) 2.5 mm2 2.5 mm2 2.5 mm2 2.5 mm2 4 mm2 4 mm2
PUMP DETAILS
Flow Rate (m3/hr) @ Hot Profile 11-13 m3/hr 14-15 m3/hr 23-25 m3/hr 25.5-38 m3/hr 52-56 m3/hr 69.3-75 m3/hr
Pipe Size 2" X 2" 2" X 2" 2.5" X 2 " 2.5" X 2 " 3" X 3 " 3" X 3"
Pump Efficiency 68% 68% 69% 69% NA NA
Pump OD (mm) NA NA NA NA NA NA
If any Filters NA NA NA NA NA NA
CONTROLLER DETAILS
Pump Controller Rating 1.5 kW 1.5 kW 2.2 kW 3.7 kW 5.5 kW 7.5 kW
MPPT Range 100-260 VDC 100-260 VDC 150-300 VDC 200-500 VDC 250 - 650 VDC 450 - 800 VDC
Controller I/P Voc 100-320 VDC 100-320 VDC 170-350 VDC 220-500 VDC 250 - 790 VDC 450 - 900 VDC
Controller I/P Vmp 150-260 VDC 150-260 VDC 150-300 VDC 200-500 VDC 220 - 650 VDC 500 - 750 VDC
Enclosure IP Protection IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
MPPT Tracking yes yes yes yes yes yes
Operating Temp C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55) C (-10) to C (+55)
Inside the control box temperature range up to 60 up to 60 up to 60 up to 60 up to 60 up to 60
Relative Humidity Less than 95%, Less than 95%, Less than 95%, Less than 95%, Less than 95%, Less than 95%,
Controller input over voltage 450 VDC 450 VDC 450 VDC 800 VDC 800 VDC 900 VDC
Controller input under voltage 70 VDC 70 VDC 70 VDC 140 VDC 250 VDC 250-300 VDC
Controller Efficiency more than 90% more than 90% more than 90% more than 90% more than 90% more than 90%
Degree of Protection IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
Protection Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc. Overload, under Voltage, reverse Polarity, dry run etc.
Remote Monitoring Details Yes Yes Yes Yes Yes Yes

*All models feature MPPT tracking controllers and robust protection against reverse polarity and dry running.

Reach Out

Contact Us

Email Us
mylokenergy@gmail.com
Call / WhatsApp
+91 9363626046 Chat on WhatsApp
Mr. Lokesh B.E., Engineer
+91 6369969138 Chat on WhatsApp
Location

31/12Z5A, MATHAIYAN LAYOUT, NADAR COLONY,
METTUPALAYAM-641305. COIMBATORE DIST, TAMILNADU.
